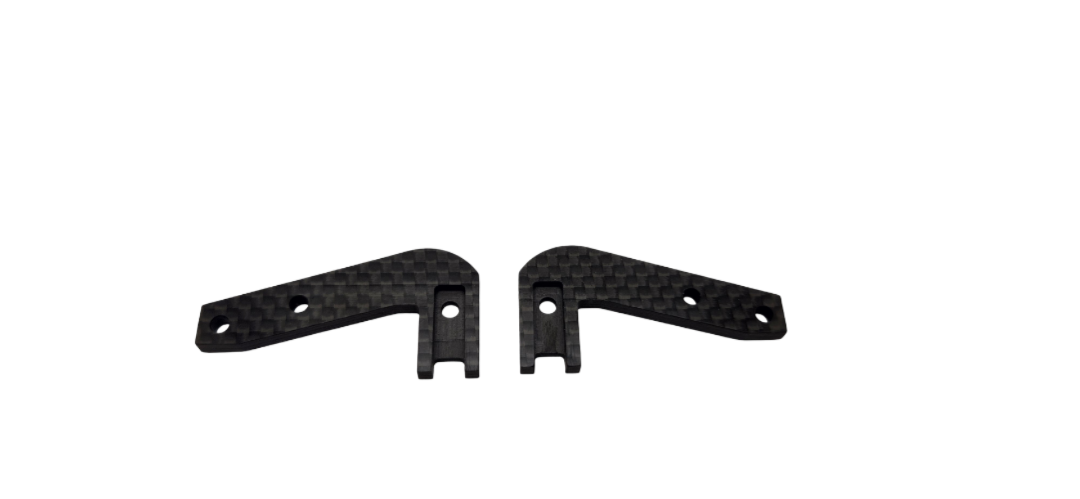

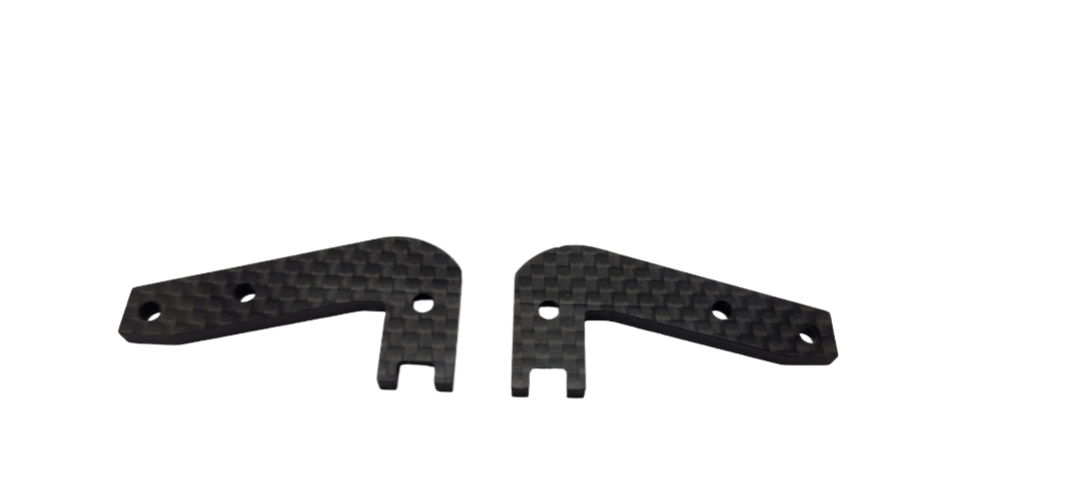

MAD Wurks A800R Vertical Body Mount

The A800R Vertical Body Mount keys off the bulkhead to prevent movement.  It is designed to allow bulkhead flex tuning to suit your desired flex.

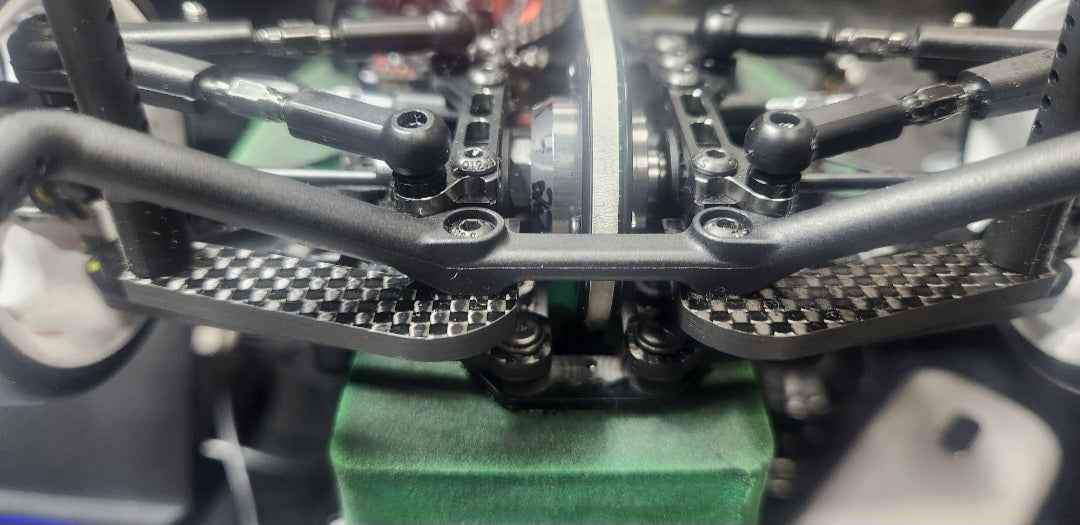

The starting setup is to run the existing plastic rear mount body posts sitting on top of the vertical body mounts with a 1.75mm shim underneath the plastic rear mount.  Cut your rear body mount posts to just inside your preferred body position so it sits close to your resting rear body lexan.  This allows you to have a rear anti-tuck while maintaining similar stock rear bulkhead flex characteristics.

You can also run a c26 to flatten the rear end out more allowing more rotation. This can be run under the plastic mount, or on it's own if you don't want an anti tuck.

For further tuning options, MAD Wurks is also releasing M tuning braces for the A800R.
